Description

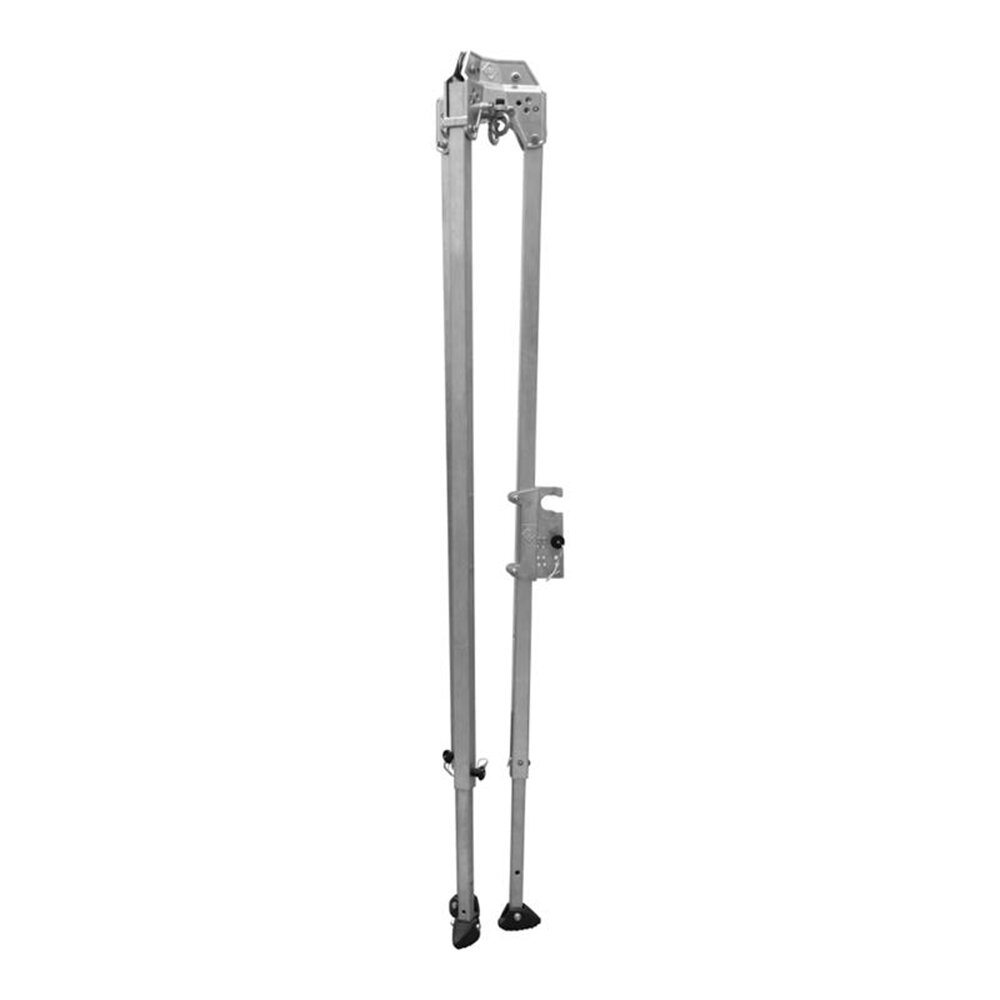

IKAR DB-A3 TRIPOD / X4002XX00
Portable tripod with adjustable locking legs and 3 intergated pullies. Head construction allows a variety of leg angles and a safety-chain-free design. Ideal for economical compliance in many basic confined space, fall arrest applications and rescue.
Portable tripod with adjustable locking legs and 3 intergated pullies. Head construction allows a variety of leg angles and a safety-chain-free design. Ideal for economical compliance in many basic confined space, fall arrest applications and rescue.
- up to 2.54 m high aluminium tripod with corrosion-resistant coating featuring 3 bolts-in anchor points
- 1.56 m in collapsed setup for transportation, weight is 24 kg
- 2 stage independently adjustable telescopic legs with stainless steel pins and foldable rubber shoes with spiked edges - the individually adjustable legs are advantageous as they can be used on uneven ground
- 3 pulleys built into a die casted head
- tripod is designed to be used without support safety chain, which reduces a risk of tripping
- suitable for two persons with a load capacity of 300 kg
Note. Accessories depicted on the pictures 1, 2 and 3 (arrester/console) are not included.
Height: min. 1.43 m, max. 2.54 m
Diameter: min. 0.64 m, max. 2.19 m
Weight: 24 kg
0299EN 795 Type BCEN/TS 16415
Accessoires:
IKAR WINCH TRIPOD CONSOLE / X4004XX00
Height: min. 1.43 m, max. 2.54 m
Diameter: min. 0.64 m, max. 2.19 m
Weight: 24 kg
0299EN 795 Type BCEN/TS 16415
Accessoires:
IKAR WINCH TRIPOD CONSOLE / X4004XX00
- aluminium bracket to connect IKAR PLW winch to IKAR DB-A3 TRIPOD
- dimensions: 200 x 130 x 82.5 mm (length x width x height)
- weight: 2 kg
IKAR HRA TRIPOD CONSOLE / X4003XX00
- universal aluminium bracket to connect IKAR HRA recovery devices (up to 30 m) to IKAR DB-A3 TRIPOD
- dimensions: 255 x 165 x 78 mm (length x width x height)
- weight: 1.8 kg
- durable bag with a reinforced bottom to transport and protect the tripod
- shoulder straps allow easy transport of the tripod to a workplace
- zippered top access into the bag
- durable material for higher mechanical resistance due to double-layer PVC sheath
- dimensions 160 x 30 cm / weight 2 kg / max. load 30 kg
Download
instructions of usePDF - 4,2 MB
